Galvanized & Copper Split Ring Hanger (1/2 - 4 inch)

Split Ring Hangers are designed to support non-insulated stationary pipe lines. They can suspend pipe from joists, steel beams, wooden rafters, or walls. They can be used in both horizontal and vertical applications.

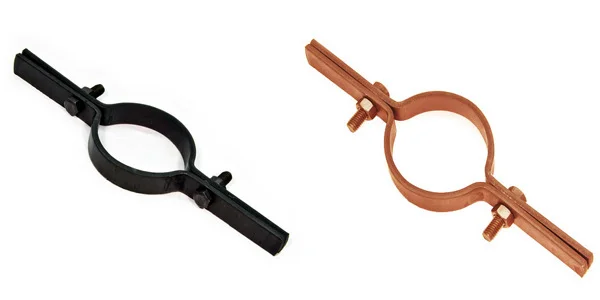

Galvanized Riser Clamp (1 - 4 inch) and Copper Riser Clamp (3/4 - 3 inch)

Riser Clamps are used for supporting piping through floors where extreme load conditions exist and can be used in both vertical and horizontal applications.

Galvanized Clevis Hanger (1/2 - 8 inch) and Copper Clevis Hanger (1/2 - 4 inch)

Clevis Hangers are used to suspend non-insulated or insulated stationary pipe. Insulated-pipe applications require a unique insulated coupling clevis hanger. These hangers mount directly to strut or suspended hanger rods.

Iron (IPS) & Copper Uni-Strut (1/2 - 2 inch)

Uni-strut Clamps are designed to support stationary pipe and tubing lines from strut channels or on rooftop pipe and equipment supports.

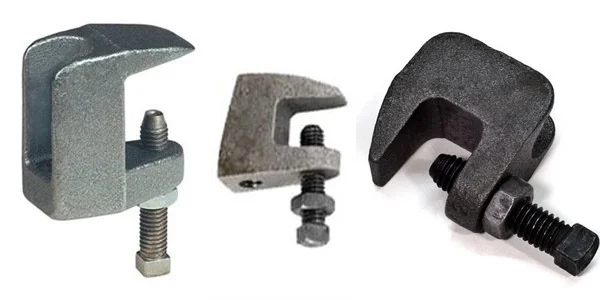

1/2 Wide Beam Clamp

3/8 Beam Clamp

Beam Clamps are designed for roof installations with bar joist type construction. They can also be attached mechanically to the top or bottom flange of steel beams

C-clamps are used to attach I beams, channels, and wide flange beams.

3/4x20 gauge Steel Band Iron (10FT)

3/4x22 gauge Copper Band Iron (10FT)

Band Iron  is a thin metal strap commonly used when a pipe must be hung lower than a J-Hook can reach. Band irons are available in copper or iron

• Flexible, non-conductive polypropylene
• 3/4″ wide, .050 thick
• 1/8″ diameter holes every 3/4″
• 125 lb. ultimate load ASTM A-370-77
• Can be cut with scissors or utility knife
• Uses: pipe hanger, duct hanger and tubing utility strapping

Stud Brackets are used for supporting 1/2" to 2" piping and are ideally used in toilets, sinks, lavatories and other residential and commercial applications.

1/2 &3/8 Galvanized Face Plate and 3/8 Copper Face Plate

Face Plates are used in conjunction with a threaded rod. The flange can be mounted to most surfaces. The center hole accepts a piece of 3/8" threaded rod allowing for various types of pipe hangers to be placed on the opposite

(1-1/2-4 inch)

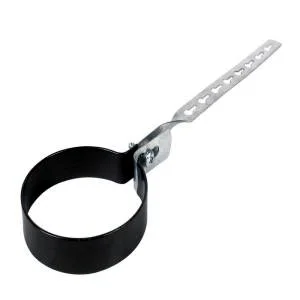

DWV Hangers are designed to provide an economical and simple way to support non insulated PVC drain, waste, and vent pipe lines.

Pipe Hooks are used to hang pipes from floor joists.

Copper Pipe Hook

1/2X6, 1/2X8, 3/4X6, 1X8, 1-1/4X8, 1-1/2X8, 2X8

Steel Pipe Hook

1/2X6, 1/2X8, 3/4X6, 3/4X8

Galvanized & Copper Pipe Strap (1/4 - 2 inch)

Tube Straps are designed to support stationary pipe and tubing lines from strut channels or on rooftop pipe and equipment supports.

Stocking 1/2, 3/4 and 1 inch

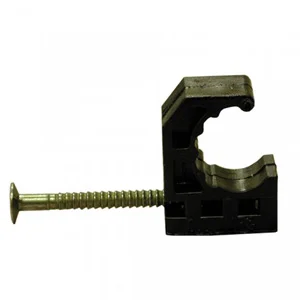

Plastic clamp with preloaded nail for copper, CPVC, polybutylene tubing

Stocking 1/2, 3/4 and 1 inch

• Plastic insulating and suspension clamp in one
• Eliminates noise from tubing expansion and contraction
• For copper, CPVC and polybutylene tubing

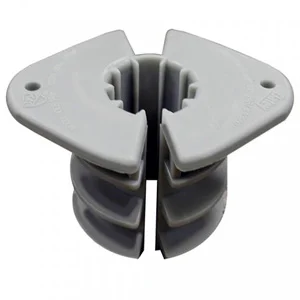

Stocking 1/2 & 3/4 inch

• Plastic insulator eliminates noise from expansion and contraction
• For copper, CPVC and polybutylene tubing
• UPC listed
• Drill hole size 1 3/8″

Stocking 1/2, 3/4 and 1 inch

• Plastic clamp eliminates noise from tubing expansion and contraction
• Supports copper, CPVC and polybutylene tubing

Stocking (1/2 - 4 inch)

• EPDM gaskets
• Metal friction ring
• Maximum 125 PSI at 120°F
• Pipe ends must be restrained
• Fits both IPS and Schedule 40 pipe
• Galvanized for corrsion protection

Stocking:

• 1/2 Copper or 3/8 IPS
• 3/4 Copper or 1/2 IPS
• 1 Copper or 3/8 IPS
• 1-1/4 Copper or 1 IPS
• 1-1/2 Copper or 1-1/4 IPS
• 2 only fits 2 inch Copper

Features:

• EPDM gaskets
• Bronze coated brass bodies and nuts
• Maximum 125 PSI at temperatures up to 180°F
• Pipe ends must be restrained on both ends
• For use on galvanized pipe and copper tubing (check sizes)
• LEAD FREE

Stocking:

• 1/2 IPS or 3/4 copper
• 3/4 IPS or 1 copper
• 1 IPS or 1-1/4 copper
• 1-1/4 IPS or 1-1/2 copper
• 1-1/2 IPS
• 2 IPS
• 3 IPS
• 4 IPS

• Plated lug, carriage bolt and nuts for corrosion protection
• 301 stainless steel clamp with neoprene gaskets for up to 180°F
• Long neck carriage bolts for easy installation
