HVAC Accessories


AC Conduit Kits (Whips)

  6-12-4 4ft Whip #10 6-12-6 6ft Whip #10 6-32-6 6ft Whip #8

6-12-4 4ft Whip #10
6-12-6 6ft Whip #10
6-32-6 6ft Whip #8


Liquid-tight flexible conduit system. A labor saving convenience kit for A/C unit hookup. Also use for heat pumps, refrigeration, hot tubs, swimming pools and outdoor lighting. Three distinct wire colors for ease of hook-up. 1 straight and 1 90 degree metallic or non-metallic connector. 90 degree connector is removable for straight connections. (Second straight connector not included.) U.L. and C.U.L Listed.

Condensate Pumps

   CP22  120 Volt Condensate Pump    CP22-230 230 Volt Condensate Pump

CP22 120 Volt Condensate Pump

CP22-230 230 Volt Condensate Pump


  CP22LP 120 Volt Low Profile Condensate Pump

CP22LP 120 Volt Low Profile Condensate Pump


Bi-Flow Dryers

  DBF163S 3/8OD Heat Pump Dryer

DBF163S 3/8OD Heat Pump Dryer



The DBF Series is designed specifically for heat pump or reverse cycle application. External check valves are not required since they are incorporated within the filter dryer shell. The core design filters out contaminant particles down to 25 microns. 100% copper sweat or nickel plated flare fittings. Desiccant core provides reliable and effective, removal of solid contaminants, acid and moisture. Provides three times the filtration as the standard bi-flow. Core is cushioned in fiber gaskets to protect core and to insure trouble-free performance. Powder paint exterior coating surpasses 500 hour ASTM salt spray test and resists corrosion.


  DAD083S 3/8OD Liquid Dryer (1/1/2 - 2/1/2 Ton)

DAD083S 3/8OD Liquid Dryer (1/1/2 - 2/1/2 Ton)


  DAD163S  3/8OD Liquid Dryer (3-31/2 Ton)

DAD163S 3/8OD Liquid Dryer (3-31/2 Ton)

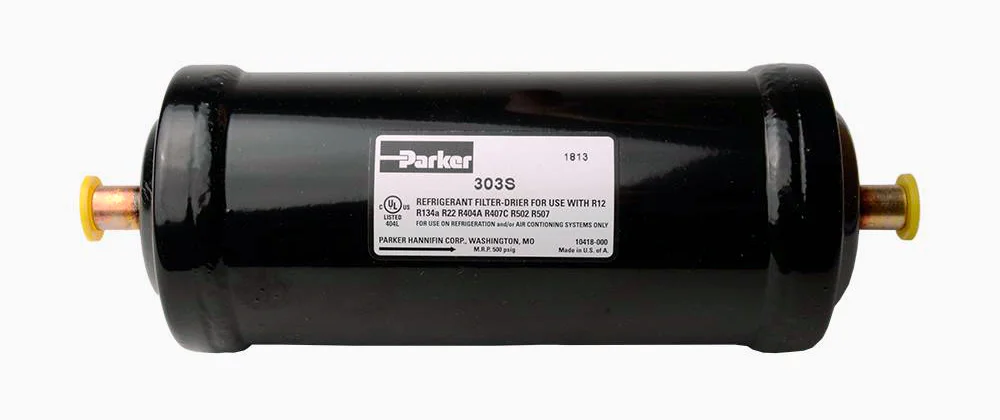

  DAD303S  3/8OD Liquid Dryer (4-5 Ton)

DAD303S 3/8OD Liquid Dryer (4-5 Ton)



Liquid Line Dryers

High moisture and acid capacity. Maximum filtration capacity. Exceptional compatibility with new polyester oils. Compatible with all existing and new refrigerants and blends including 134a, 401A/B, 402A/B, 404A, 407A/B/C, 410A, 502, 507A. Spring loaded, molecular sieve and activated alumina. Solid copper sweat fittings. Powder paint exterior coating surpasses 500 hour ASTM salt spray test and resists corrosion. Eliminates concern of additive stripping.

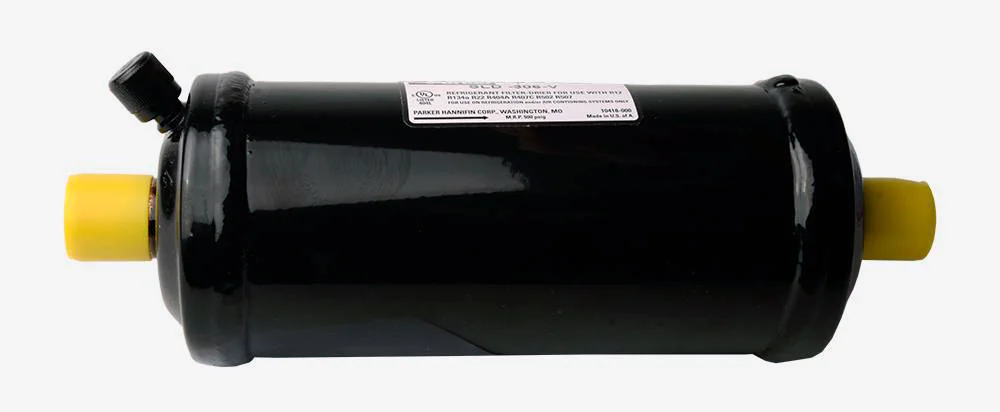

 DSS-SLD306SV 3/4OD Suction Dryer

DSS-SLD306SV 3/4OD Suction Dryer


 DSS-SLD306SV 3/4OD Suction Dryer

DSS-SLD306SV 3/4OD Suction Dryer


 DSLD13-6SVHH 3/4OD

DSLD13-6SVHH 3/4OD


 DSLD27-7SVHH 7/8OD

DSLD27-7SVHH 7/8OD

Suction Line Dryers

The solid-core clean-up dryer was developed for use in a system suction line. The compact design incorporates a large outside diameter shell, which results in a shorter lay-in length, and a larger core, which provides a greater filtration area for maximum operating efficiency.


Hard Start Kits

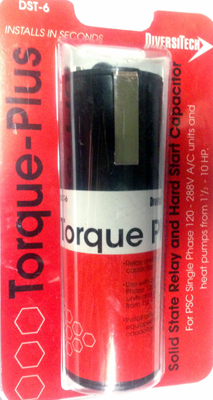

• The DST-6 can be used on all PSC single phase compressors from 1-1/2 to 10 H.P. A unique combination of relay and safety timer. The capacitor is automatically disconnected in 0.5 seconds if the compressor fails to start.

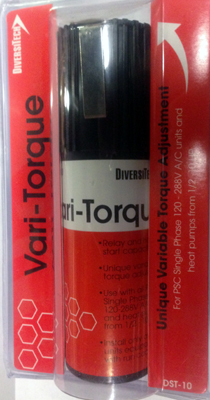

• The DST-10 the VariTorque™ 690% Boost, Instant Recycling Hard Start Kit. Adjustable starting torque allows installer to optimize motor starting and minimize problems normally associated with hard start kits. Adjust to reduce electrical load problems including light flicker on compressor startup. Includes patent pending circuitry which protects capacitor, motor and relay. LED indicator provides easy 2 wire hookup. 1/2 to 10 HP

   DST-6

DST-6


   DST-10

DST-10

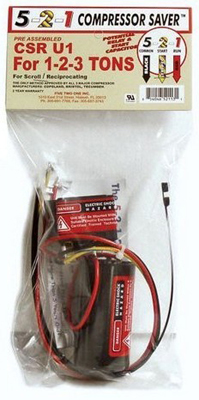

  • CSR-U-1 1-2-3 TON  • CSR-U-2 3-1/2-4 TON  • CSR-U-3 4-5 TON

• CSR-U-1 1-2-3 TON
• CSR-U-2 3-1/2-4 TON
• CSR-U-3 4-5 TON


Quick Disconnect Boxes

  DDS-30 AMPED FUSED

DDS-30 AMPED FUSED


  DDS-60 AMPED FUSED

DDS-60 AMPED FUSED


  DDS-60U UNFUSED

DDS-60U UNFUSED


Heat Pump Risers

HPR-3-2PG

HPR-EXT
